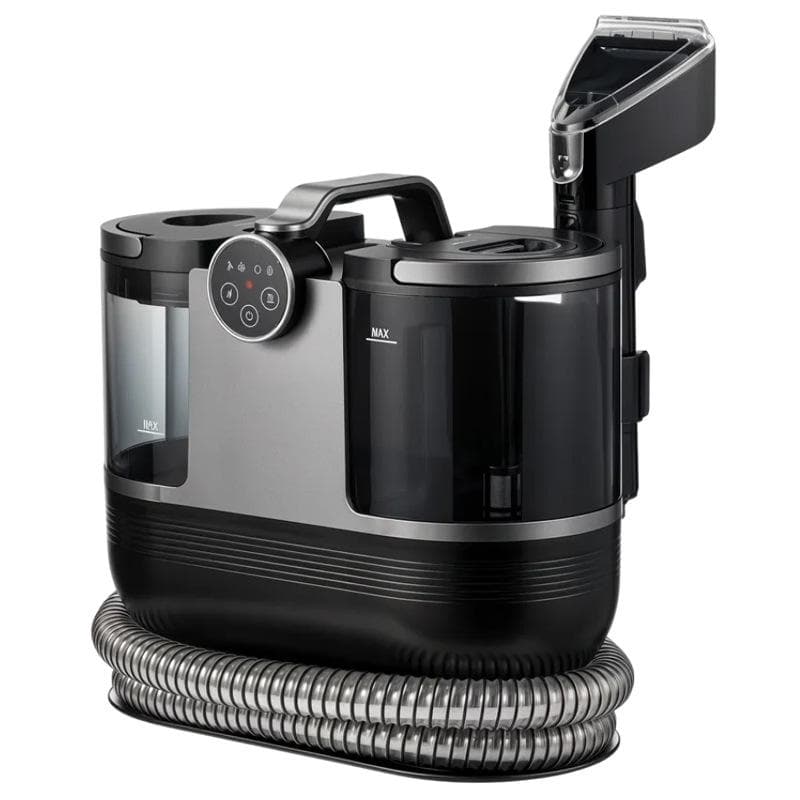

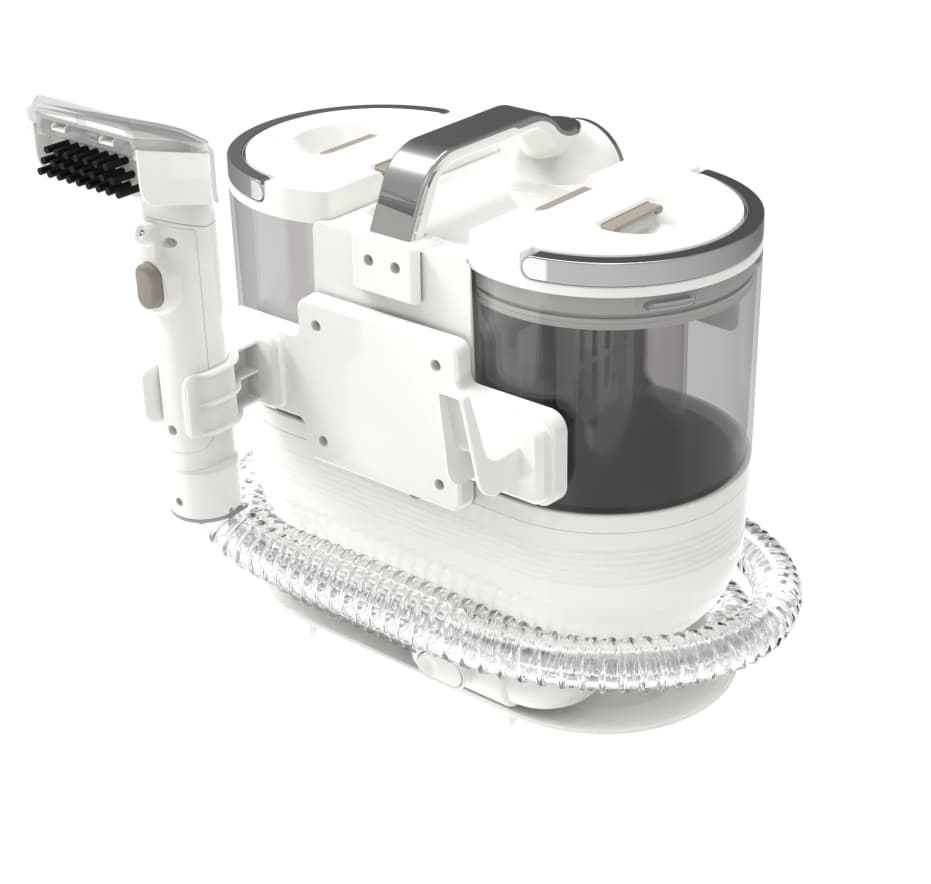

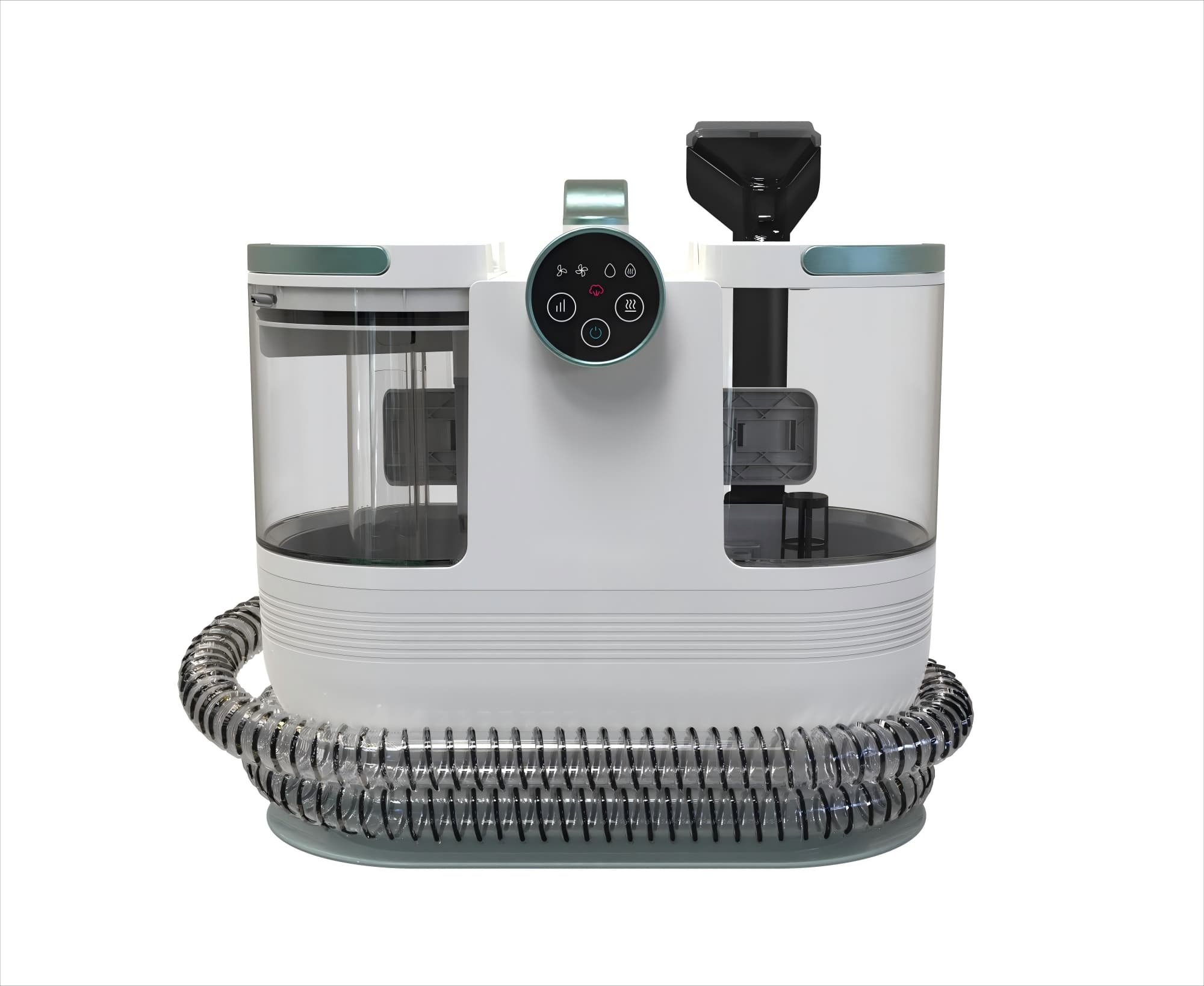

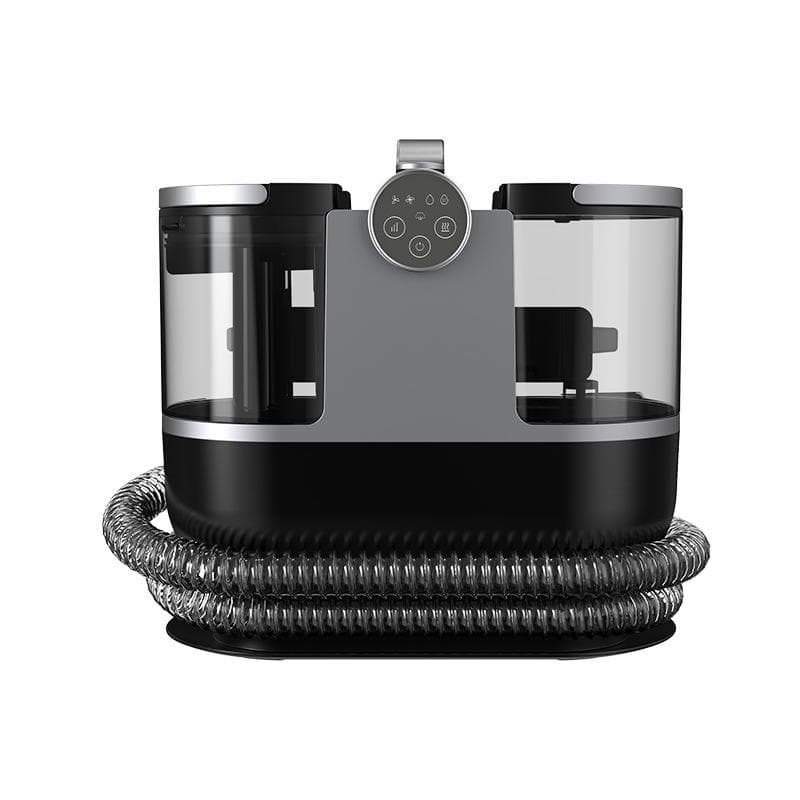

STC-506H Bagless Fabric Cleaning Machine
| Color | Black / Dark grey / White |
| Plug type | EU / AU / UK / US |
| Voltage | 110–120 V / 220–240 V |
| Model | STC-506H |
| SKU | STC-506H |
| Product type | Fabric cleaning machine (bagless spot cleaner) |
| Rated power | 1700 W |
| Vacuum degree | 16000 Pa |
| Cleaning modes | Low temperature 40 °C / High temperature 60 °C |
| Heating temperature | 60 °C ± 5 °C |
| Clean water tank | 1600 ml |
| Dirty water tank | 950 ml |
| Noise level | ≤ 78 dB |
| Hose length | 1.8 m |
| Cable length | 4 m |
| Operation radius | 6 m |
| Net weight | 4.22 kg |
| Product size | 320 × 240 × 308 mm |
| Nozzle set | 14 nozzles |
| Suction levels | Standard / Strong |
| Water supply | Cold water / Hot water / Steam |
| Dust collection | Bagless |

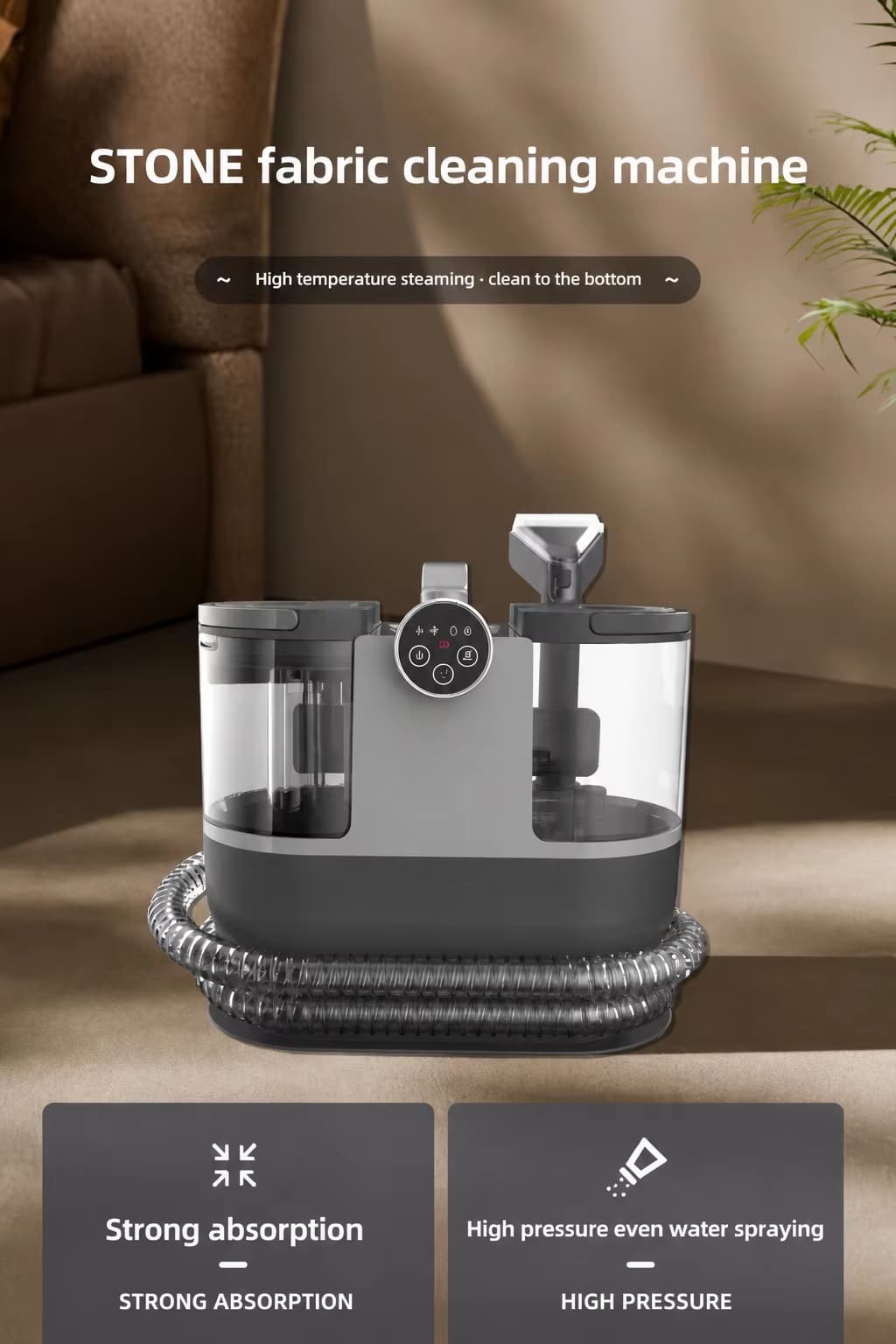

The STC-506H fabric cleaning machine combines 16000 Pa of suction, 1700 W of heating power and a high-pressure water spray in a 4.22 kg body. Two cleaning temperatures — 40 °C for new and protein-based stains, 60 °C for oily and stubborn old stains — plus a steam supply mode let one unit handle the fabric work a cleaning company, hotel housekeeping team or car detailing studio meets in a single day.

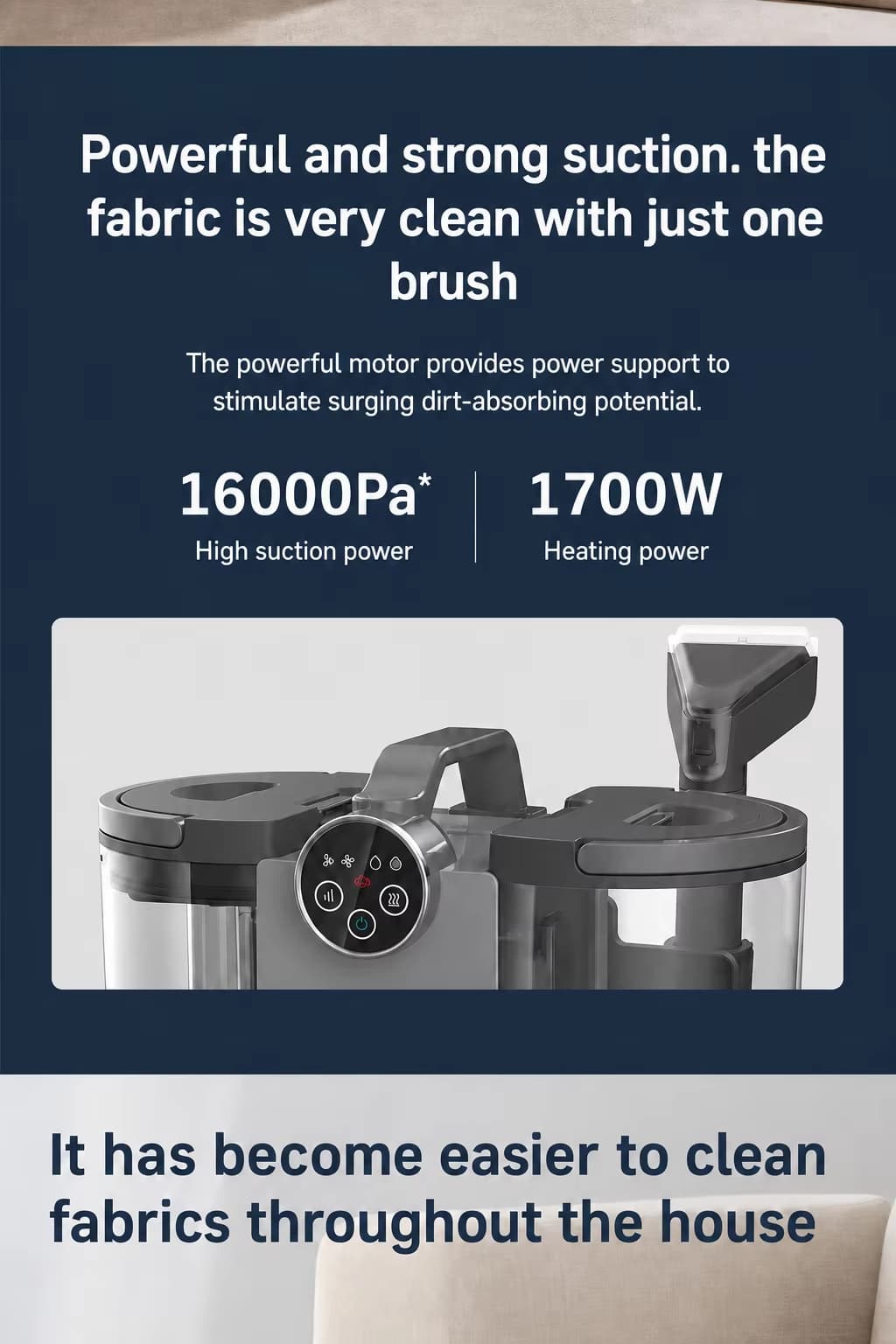

16000 Pa Suction and 1700 W Heating Power
The motor behind the STC-506H fabric cleaning machine is rated at 1700 W and 16000 Pa of vacuum degree, which is what lets a single brush pass pull the loosened soil out of the pile instead of only wetting the surface. On a fabric sofa the difference is visible: one pass with the standard brush head leaves the fabric visibly cleaner, without the back-and-forth scrubbing that wears the weave.
Suction runs in two levels — standard and strong — set from the same dial that controls the water and steam supply, so the operator can drop to standard on a delicate weave and switch to strong on a carpet.
High-Pressure Water Spray That Reaches the Base Layer
Water is delivered as a high-pressure, uniform spray rather than a dribble, so the cleaning solution penetrates down to the base layer of the fabric where the soil actually sits. The same circuit then extracts the dirty water and returns it to the 950 ml dirty water tank — the two tanks are separate, so recovered waste never goes back onto the fabric.
Two Cleaning Temperatures: 40 °C and 60 °C
The machine runs two cleaning modes, and the choice is decided by the stain, not by the operator’s habit.
Low temperature, 40 °C — for occasional new stains, bloodstains and protein-based stains such as milk that are hard to lift with room-temperature water. High temperature, 60 °C — for oily stains, grease and stubborn old dirt, and it also kills some bacteria and mites. The heating temperature is rated at 60 °C ± 5 °C, and a steam supply mode adds a third option on the dial for the same nozzle set.
Dries Fast, Not Just Looks Clean
A fabric surface that looks clean is not the same as a clean one: dust mites, sweat grease, snack debris, pet urine stains and hair sit below the surface, and contact with air turns that into mildew. The 16000 Pa extraction dehydrates the fabric as it cleans, so the material comes out of the pass drier and is ready to use sooner — which is what decides whether a hotel room can be sold the same afternoon.

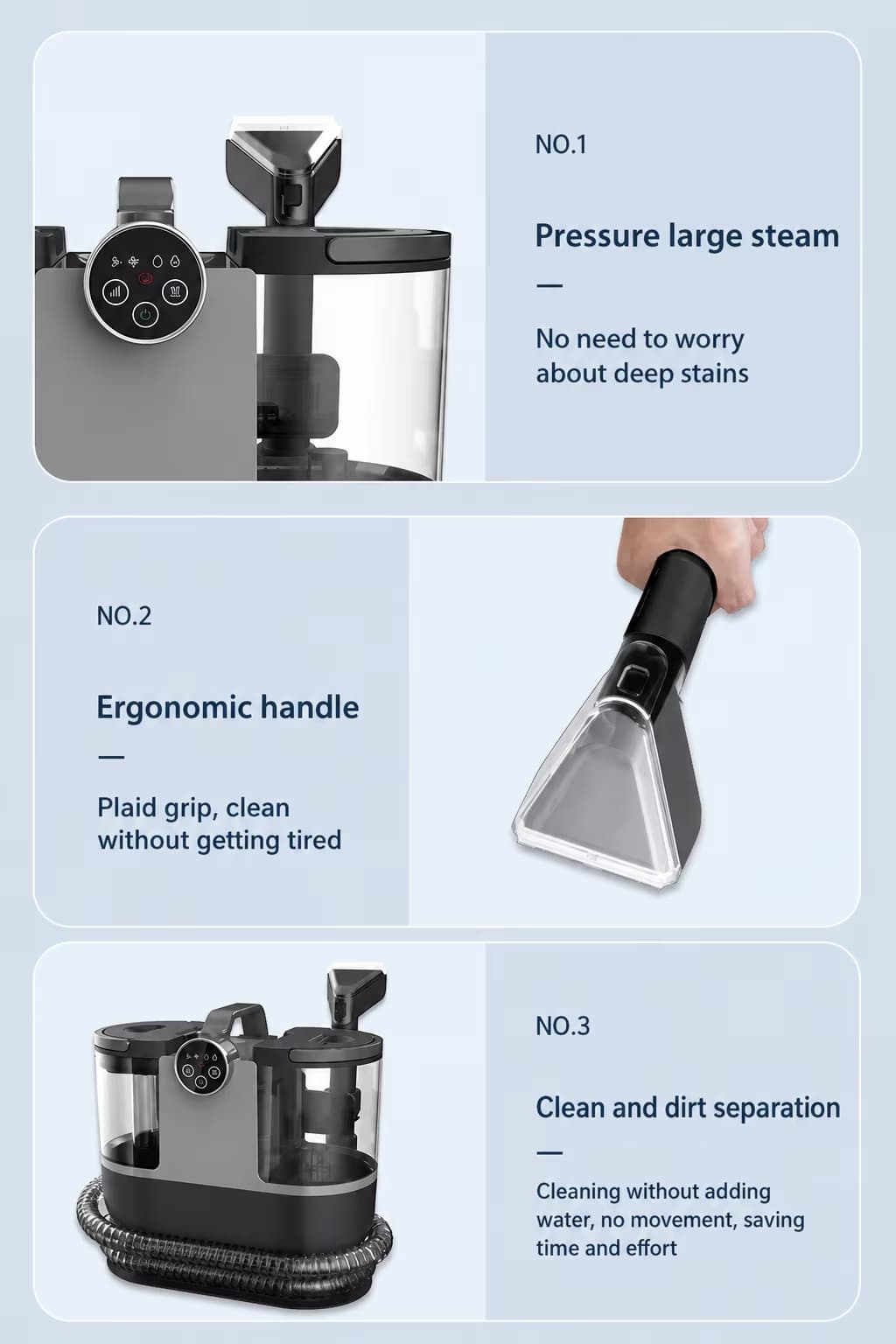

Three Details That Matter on a Paid Job
Pressure steam. Large steam output handles deep stains that water alone will not shift. Ergonomic handle. The grip is shaped so the hand stays relaxed through a long pass, which is the difference between finishing a floor of rooms and stopping halfway. Clean and dirt separation. The two tanks are independent, so the machine cleans without adding water mid-job and without carrying the waste back over the surface.
Simple Operation From One Dial

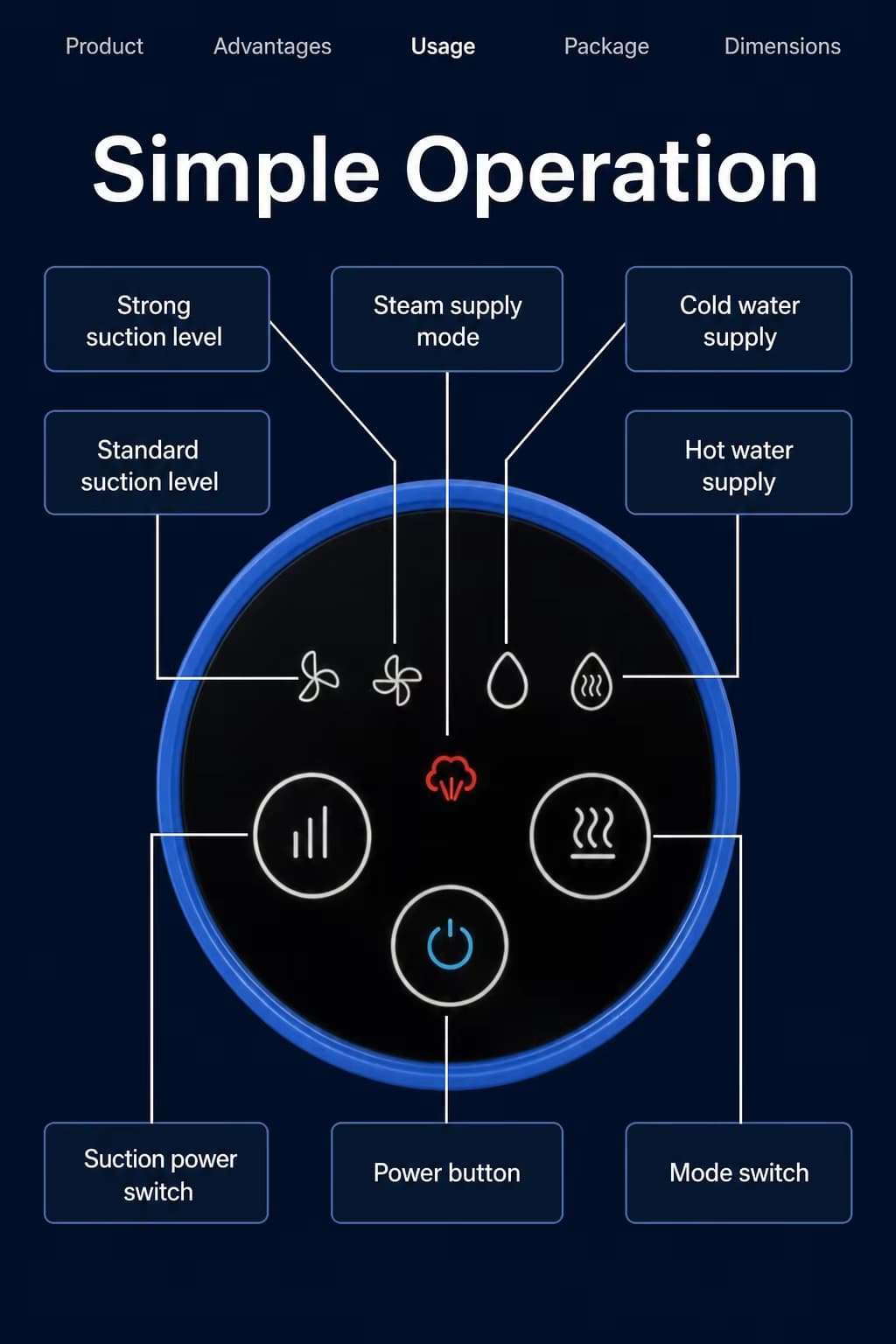

Every function sits on the control dial: power button, mode switch, suction power switch, standard suction level, strong suction level, steam supply mode, cold water supply and hot water supply. Nothing is buried in a menu, so a new crew member can be shown the machine once and run it the same day.
14 Nozzles in the Set

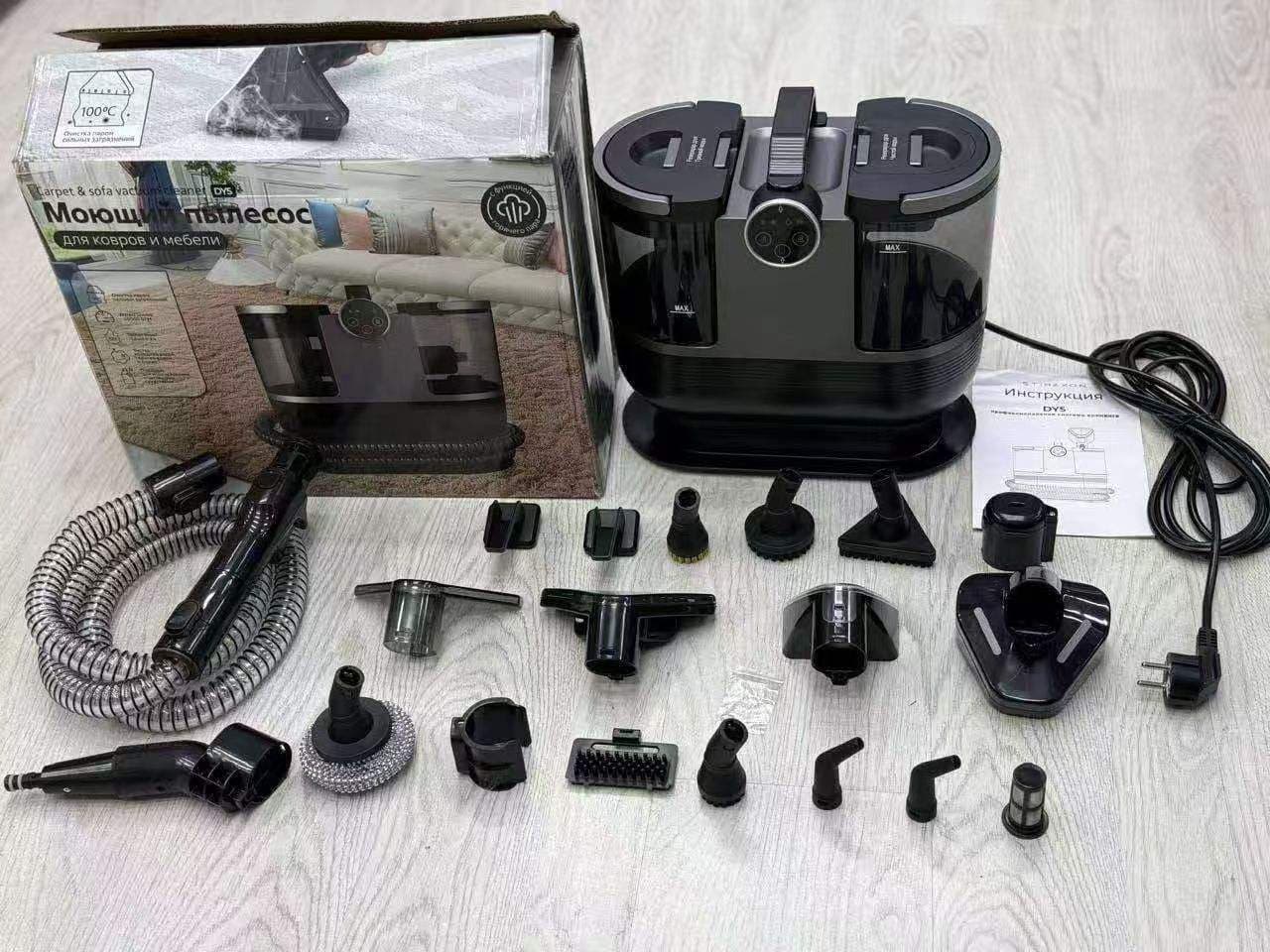

The set includes 14 nozzles. The parts shown in the specification sheet are a crevice nozzle, a brush, a steel brush head, a large brush head, a cleaning brush head, a triangle brush head, a steam adapter, a steel sponge and a nozzle distributor with iron. Between them they cover fabric, seams, hard edges and the tight gaps a sofa or a car seat leaves exposed.

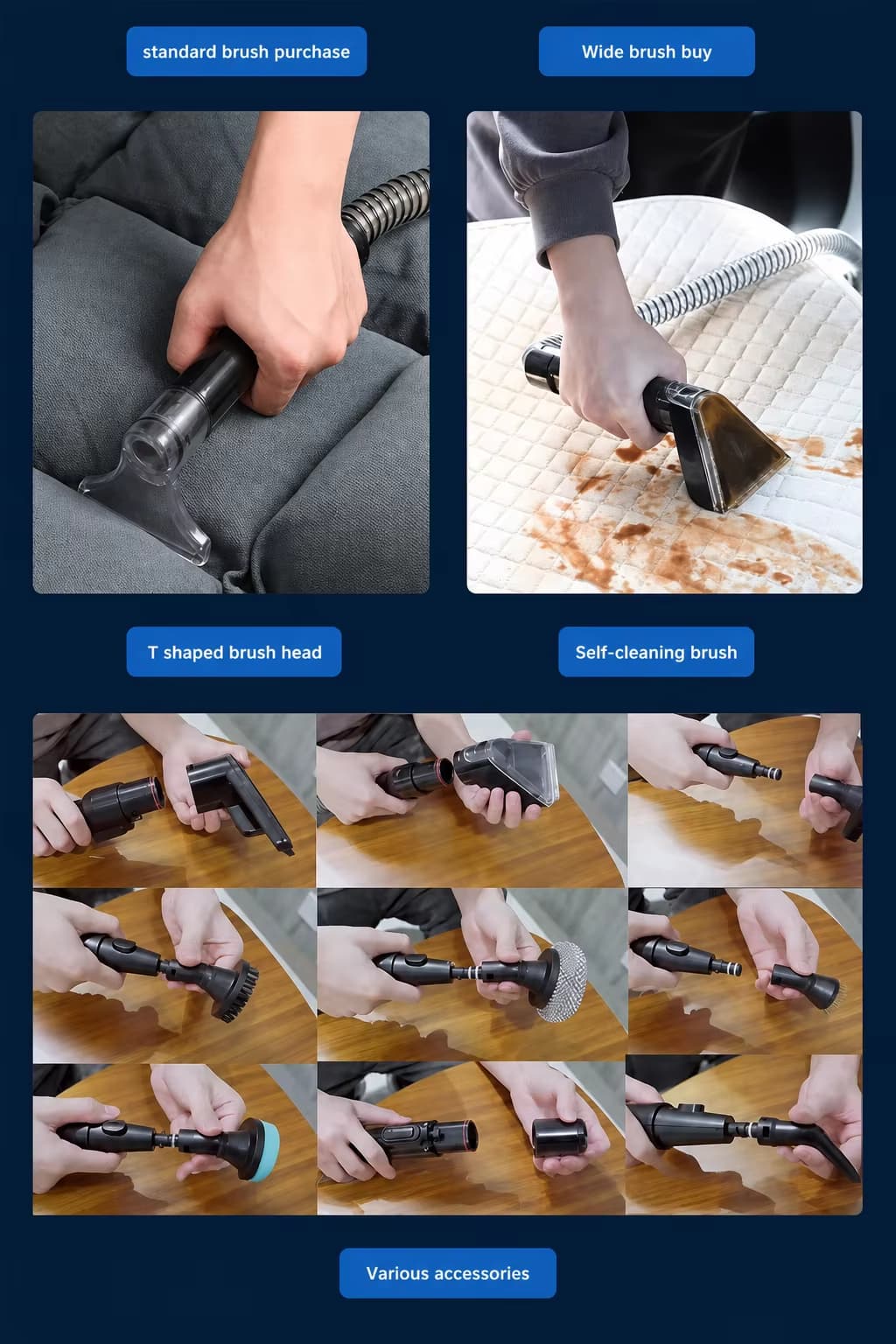

Which Brush Head for Which Surface
Standard brush head — smaller face for sofas, cushions, mattress edges and car seats. Wide brush head — larger face for carpets, rugs and big upholstered panels. T-shaped brush head — for corners and the narrow run along a seam. Self-cleaning brush head — the self-cleaning device runs an automatic vacuum flush through the head, so the tool does not have to be stripped down between jobs.
Carpets, Sofas, Mattresses and Car Interiors

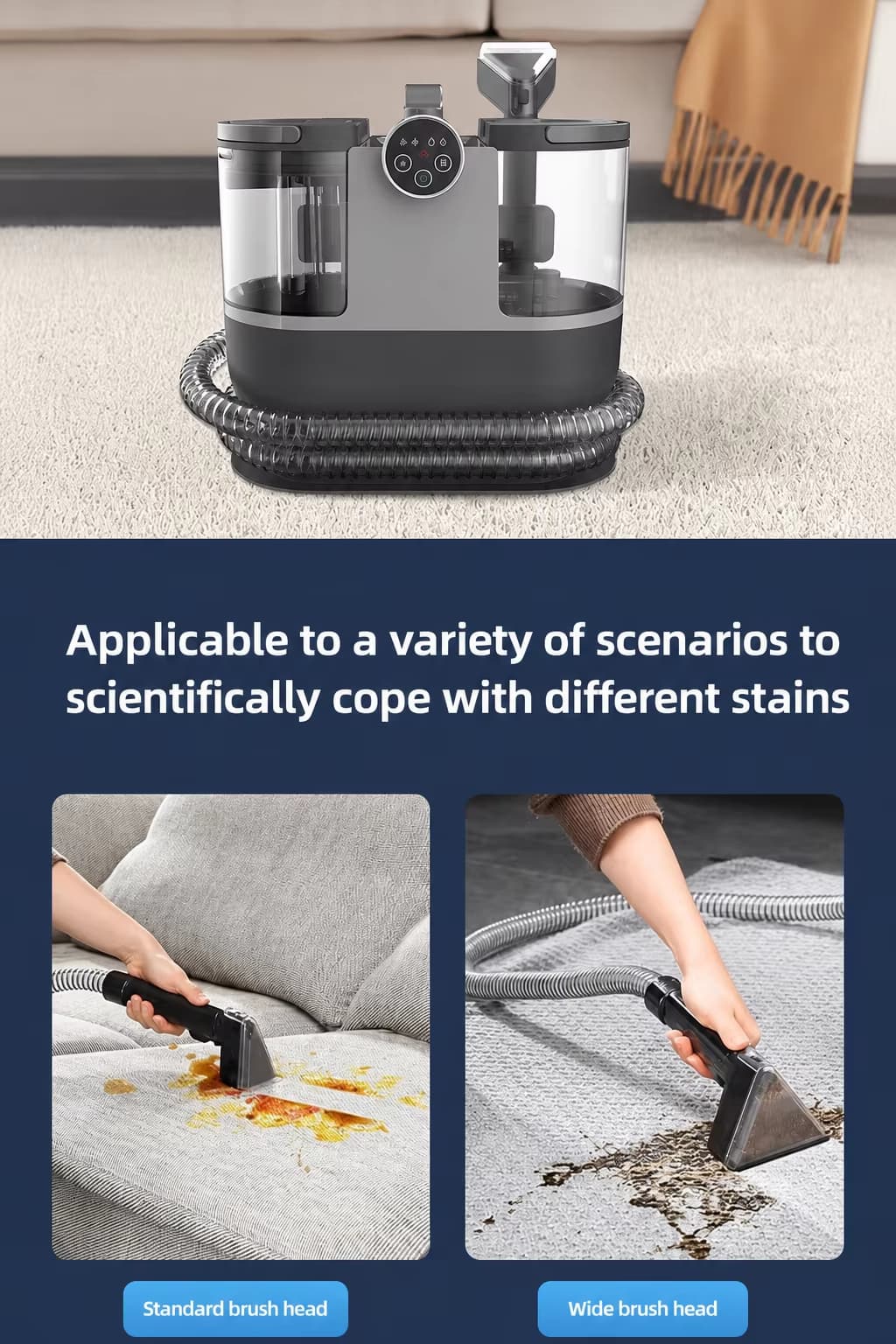

The same STC-506H fabric cleaning machine is used across the fabric surfaces a commercial buyer is paid to clean: sofas and couches, carpets and rugs, mattresses and car seats. The standard head suits tight upholstery, the wide head suits open carpet, and the temperature is chosen per stain — low for a fresh spill, high for grease that has been sitting.
4 m Cable, 1.8 m Hose, 6 m Working Reach

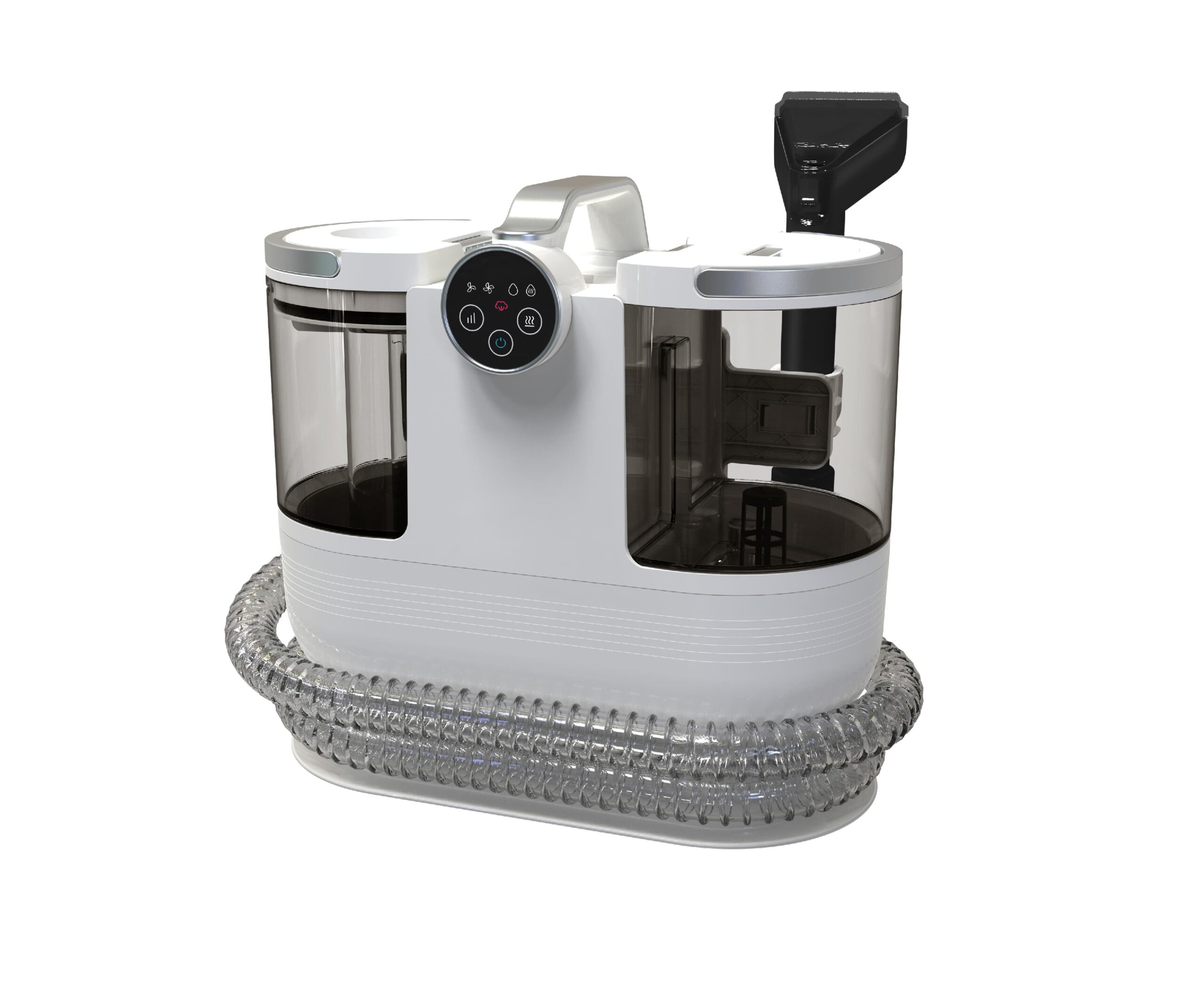

The cable runs 4 m and the hose 1.8 m, which gives a 6 m operation radius from a single socket — enough to work across a sofa group or a car interior without unplugging. The hose coils around the base for storage, and the whole unit weighs 4.22 kg at 320 × 240 × 308 mm, so it moves between rooms and vehicles without a trolley.
Why Surface Wiping Is Not Enough
Four common methods fall short on fabric. Brush scrubbing cleans only the surface, so stubborn stains and bacteria stay in the pile. Disassembly and washing is slow, hard to dry and hard to restore afterwards. Cleaning fluid wiping leaves foam that is difficult to remove and pushes waste into the base layer of the fabric. Calling a service costs per visit and cannot meet daily cleaning needs. Extraction with a heated spray answers all four at once, which is the case for putting a fabric cleaner machine on site instead of a brush in a hand.
For Commercial Cleaning Buyers
The STC-506H is supplied for cleaning companies, hotel and hospitality housekeeping, janitorial teams, car detailing studios and appliance distributors who need a fabric cleaning machine in a rental fleet or on a retail shelf. Colour is available in black, dark grey or white, the plug in EU, AU, UK or US format, and the voltage in 110–120 V or 220–240 V — one model number covers both voltage markets.
Frequently Asked Questions
What is the STC-506H fabric cleaning machine?
It is a bagless fabric cleaning machine rated at 1700 W and 16000 Pa, with a high-pressure water spray, a 1600 ml clean water tank and a 950 ml dirty water tank. It cleans sofa and couch fabric, carpets and rugs, mattresses and car interiors, and it weighs 4.22 kg at 320 x 240 x 308 mm.
What is the difference between the 40 C and 60 C cleaning modes?
The 40 C low temperature mode is for occasional new stains, bloodstains and protein-based stains such as milk that room-temperature water cannot lift. The 60 C high temperature mode is for oily stains, grease and stubborn old dirt, and it also kills some bacteria and mites. Heating temperature is rated at 60 C plus or minus 5 C.
How much suction and heating power does the STC-506H have?
The machine is rated at 16000 Pa vacuum degree and 1700 W heating power. Suction runs at two levels, standard and strong, selected from the control dial.
What are the tank capacities and is the machine bagless?
The clean water tank holds 1600 ml and the dirty water tank holds 950 ml. The tanks are separate, so recovered dirty water never returns to the fabric, and there is no dust bag to fit or replace.
How far can the STC-506H reach from one power socket?
The cable is 4 m and the hose is 1.8 m, giving a 6 m operation radius from a single socket. The hose coils around the base for storage.
What is included in the 14 nozzles?
The set includes 14 nozzles. The parts listed in the specification sheet are a crevice nozzle, a brush, a steel brush head, a large brush head, a cleaning brush head, a triangle brush head, a steam adapter, a steel sponge and a nozzle distributor with iron.
How heavy is it and what are the dimensions?
Net weight is 4.22 kg and the product size is 320 x 240 x 308 mm, with a noise level of 78 dB or less.
What voltage and plug types are available?
Two voltage versions are offered, 110-120 V and 220-240 V. Plug type can be EU, AU, UK or US, and the body colour can be black, dark grey or white.
Which brush head should I use on a sofa and which on a carpet?
Use the standard brush head on sofas, cushions, mattress edges and car seats, and the wide brush head on carpets and rugs. The T-shaped brush head reaches corners and the narrow run along a seam.
Does the self-cleaning brush head have to be taken apart?
No. The self-cleaning brush head carries a self-cleaning device that runs an automatic vacuum flush through the head, so the tool does not have to be stripped down between jobs.
